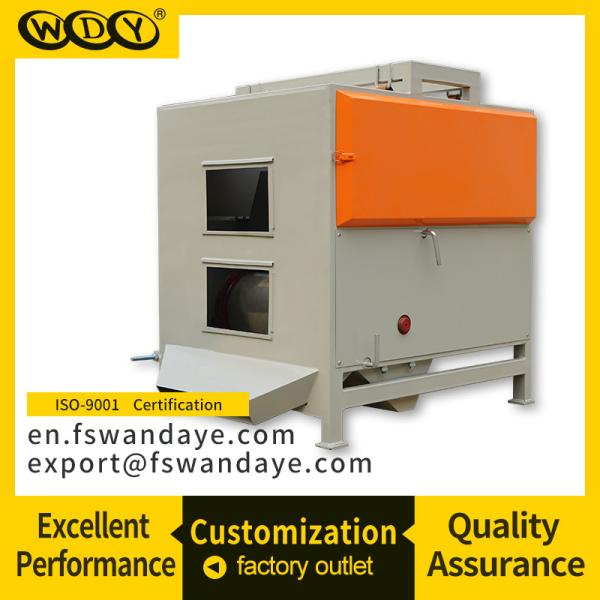

Stainless Steel Dry 8000GS Permanent Magnetic Roller Separator

Brand Name : WDY

Model Number : Double Layer dried type roller Iron remover

Certification : ISO9001：2008

Place of Origin : FOSHAN,GUANGDONG,CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 SETS PER MONTH

Delivery Time : 35 days after receiving total payment

Packaging Details : Wooden and polybag pakage

Model : 2*380*800

Mmagnetic intensity (GS) : 6000-8000

Material : Carbon steel bracket ;stainless steel feeding bin and discharge hopper available

Rated Voltage : 380V

Capacity : Match with feeding output

Contact Now

Permanent Magnetic Dry Type Roller Separator mainly for mining industry 0.1-5mm sand or plastic particles efficent

Dry Magnetic Roller Separation consists of permanent roll made of NdFeB disks interleaved with pure iron disk, idle roll, conveying thin belt, adjustable splitter and vibratory feeder. Operation of the separator is so simple that material to be treated is fed by the vibratory feeder onto conveying thin belt, magnetic particles are attracted to the roll and discharged into a “M” separate chute, while non-magnetic particles are discharged from the roll a “NM” chute.

Product capacity(T)

4-10

Magnetic field intension(GS)6000

 6000-8000

Magnetic roller specification(mm)

φ380 X 800

Power(KW)

1.5

Input voltage(V)

380

Motor rotation quantity(RPM)

1390

Roller rotation quantity(cycle/min)

35 (adjusted)

Applications:

1. Separating or purifying the coarse weakly magnetic ore (such as hematite, ilmenite, manganese etc)
2. concentration of non-ferrous ore (such as quartz, feldspar, andalusite ete).
3. Removal of ferrous imparities from abrasives, catalysts and other powder.

Stainless Steel Dry 8000GS Permanent Magnetic Roller Separator


Product Tags:

8000GS Magnetic Roller Separator



6000GS Magnetic Roller Separator



8000GS Magnetic Roll Separator


Wholesale Stainless Steel Dry 8000GS Permanent Magnetic Roller Separator from china suppliers

Stainless Steel Dry 8000GS Permanent Magnetic Roller Separator Images
